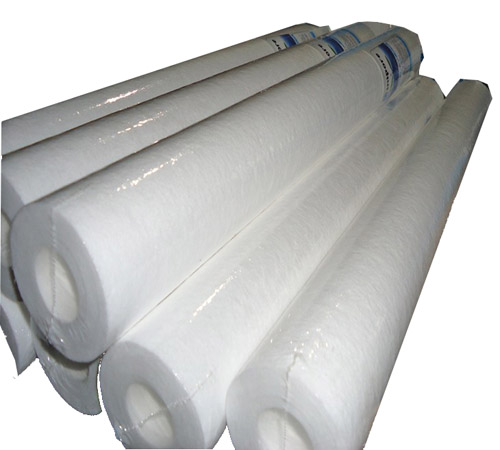

Melt Spinning PP Filter Cartridge


Product Description

PP filter cartridge adopts avirulent insipidity polypropylene as raw material, through heating melting, injection, traction, receiving shape process. PP filter cartridge with uniform pore diameter, the drain in dense deep filter structure, and has the filtration efficiency is high, the excellent characteristics of acid and alkali resistant. The filter may effectively remove suspended particles from the liquid.
Material: Polypropylene (PP)
Structure: Melt-blown type filter is polypropylene section after high temperature melt, injection, traction, receiving to form; Replace the traditional filter as a new generation of filter cartridge.
1, Features:
(1)High filtration efficiency and fine filtration precision, uniform filter aperture, filtration efficiency of more than 99%
(2)Low filtration resistance, large throughput, carry large amount of pollutant, long service life, ncreases the flow and accept dirty quantity, filter will not be blocked, prolong service life.
(3)High cleanliness, no pollution to water, acid, alkali and organic solvents corrosion resistance.
(4)High strength, filter cartridge will not deformation even the pressure difference more than 0.4 Mpa, no filtration efficiency reduce even the temperature more than 90º C.
2, NOTES:
(1)Please choose filter cartridge according to the features of the medium, viscous liquid should adopt dual-stage filtration, the former stage coarse filter, reduce resistance, prolong the service life of filter (usually 3-4 times).
(2)Please properly install the filter, when the permeate water get contaminated, carefully check whether the filter skewed, strictly alignment of both ends and recompact them.

Melt spinning cartridge (PP),Absorbent cotton filter cartridge(TZM)
Model 10” 20” 30” 40”
Length 254mm 508mm 762mm 1016mm
Treatment flow(t/h) 0.5 1.0 1.5 2.0
Features Melt spinning(normal,PP frame),wire wound(PP frame,SS frame)
Connector Melt spinning(normal flat connector)
Accuracy(μm micron) 1,5,10,25,50,75,100,150,200
Diameter(mm) External 62~65   Internal 28~30
Pressure difference(kg/cm2) Replace pressure difference:1.03; Max pressure difference 2.41
Max temperature PP(90ºC),TZM(120ºC)
Remark Filter aperture, length can be manufacturing by customer requirements
