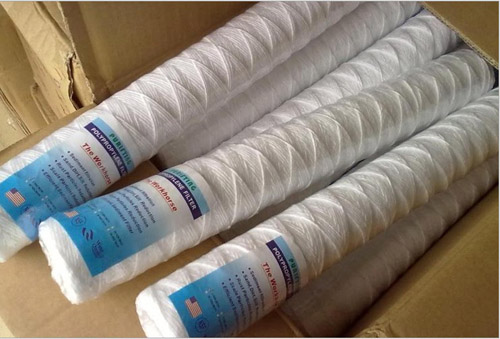

Wire Wound Filter Cartridge


Product Description

Wound cartridge size: 10", 20", 30", 40",
External diameter: 62mm, Internal diameter: 30mm,
Length: 25.2, 50.4, 76, 102cm and other length

Descriptions:

Wire wound filter cartridge is by the textile fiber roving precision wound around the porous skeleton to form, twists control filter winding density that can be made for different filter precision filter. Filter cartridge filter aperture small to large as from inner to outer, long filtration time, less filter deformation, has a good deep filtration effect. It can effectively remove suspended materials in the liquid. Large throughout, small pressure loss, high residue load, long service life. According to the nature of the liquid, filter have many different kinds of material selection.
Features:
1, Size: External diameter 65mm; Internal diameter 29 mm
2, Pressure: 0.5Mpa
3, Temperature: 60º C(PP frame), 120º C(SS frame, cotton fiber)
4, Precision: 5 micron
5, Capacity: 10 m3/h, replace about every 3 months
Applications:

The cartridge widely applied in the pure water machine/water purifier pretreatment processing.
1, Electronics: Pure water, organic solvent, PCB, plating
2, Petroleum and chemical industry: Petrochemistry, pharmacy, makeup, paint, photo-imagable liquid, ink, etc.
3, Industrial oil: Hydraulic oil, lubricating oil, cutting oil, etc.
4, Pharmacy industry: Sirop, alcohol, compound water, VC raw material, injecta, etc.
5, Other: Resin glass, bearing washing, laser cooling water, ultrasonic washing water, plating liquid, etc.
