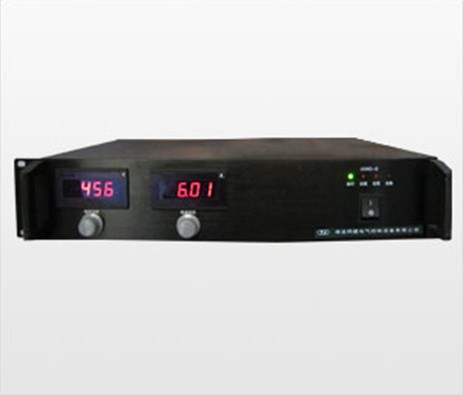

Features of LKMD series DC steady flow stabilized voltage source (EDI power source)
1. Output: voltage0~300V, current0~10A, output power≤3KW, under the scope all voltage and current is available
2. Steady voltage & current: voltage & current can adjust from 0 to rated, selectable voltage steady mode or current steady mode
3. Short circuit protection: auto shut down and give alarm when short circuit occur
4. Over current protection: auto shut down and give alarm when current overflow
5. Over voltage protection: auto shut down and give alarm when voltage over set value
6. Display: digital meter display
7. Intelligentize: 9 pin serial port for external control and monitor
8. Stability: fully consider to the working place of the supplier, well design to enhance stability
Qualification:

电气性能 Behavior of electricity	输入电压 Input voltage	3P,380V±10%
	输入频率 Frequency	50Hz±1%
	输出电压稳定值 Stable output voltage	0-200V、0-300V、0-400V、0-500V
	输出电流稳定值 Stable output current	0-5A、0-10A
	效率 Efficiency	≥75%
	功耗 Consumption	<10W
	负载稳定度 Load stability	3%
	电压稳定度 Voltage stability	3%
	调节时间 Adjusting time	0.1s
	纹波电压 Ripple voltage	额定电压的5%, 5% of the output voltage
	输入对输出耐压 Safe voltage between input and output	1500VAC
	输出对机壳耐压 Safe voltage for shell	1500VAC
	绝缘电阻 Insulation resistance	＞10MΩ
其他参数 Other	工作温度 Running temperature	-25℃～50℃
	储存温度 Storage temperature	-40℃～70℃
	相对湿度 Relative humidity	10%～85%
尺寸及重量 Size and weight	外形尺寸 Overall dimensions	2U机箱482.6mm×375mm×88.1mm， 前把手高40mm, 后面板插座最高处50mm，二者合计90mm 加上90mm后外形尺寸：482.6mm×485mm×88.1mm， 用四个M5螺丝固定前面板，四个固定孔孔距465mm × 76.2mm
	重量Weight	7kg
