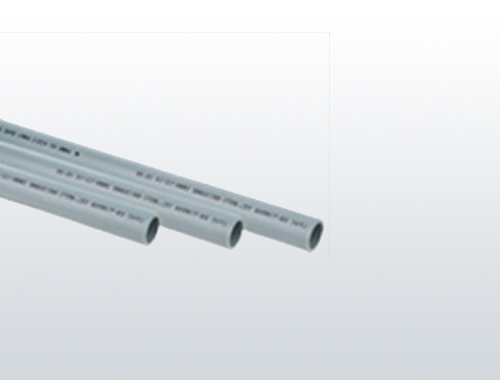

CPVC Pipe
Features:
. Handle temperatures up to 210°F.
·Not affected by soil in byried appplications; requires
water-based latex paint for outdoor, sunlight-exposed
Installations.
·Low thermal conductivity.
·Self-extinguishing; will not sustain combustion.
·Material conforms to GB10002 series standard.
·Standard length: 4 meter; medium gray in color.
·Economical to install and maintain.
Specification：
|
ISO/DIN |
Pipe Size |
Part |
|
Ф |
(In.) |
Number |
|
20 |
1/2" |
600-602 |
|
25 |
3/4" |
600-603 |
|
32 |
1" |
600-604 |
|
40 |
1-1/4" |
600-605 |
|
50 |
1-1/2" |
600-606 |
|
63 |
2" |
600-607 |
|
75 |
2-1/2" |
600-608 |
|
90 |
3" |
600-609 |
|
110 |
4" |
600-610 |
|
140 |
5" |
600-611 |
|
160 |
6" |
600-612 |
|
225 |
8" |
600-613 |
|
280 |
10" |
600-614 |
|
315 |
12" |
600-615 |
