Detailed Product Description

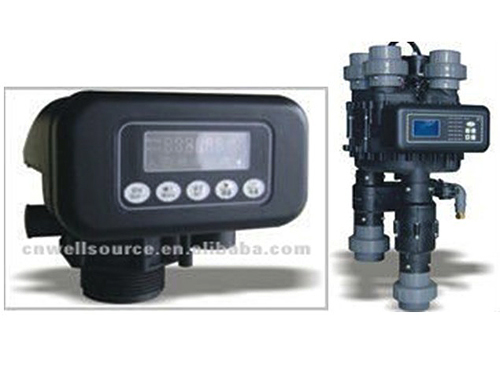

JY Series Multi-Port Control Valve
1.Dual Control Model
2.easy operation
3.have LED and LCD display



1.It adopts the backflow regeneration controlling principle of floating bed:The quality of water is high whereas the consumption of salt is low:
2.No hard water runs through the equipment for the industrial type.It is suitable in some situations where the requirements for the quality of water are high,such as boilers.
 3.The sealing for the core of planar valve adopts ceramic non-wear type and guarantees reliable usage.

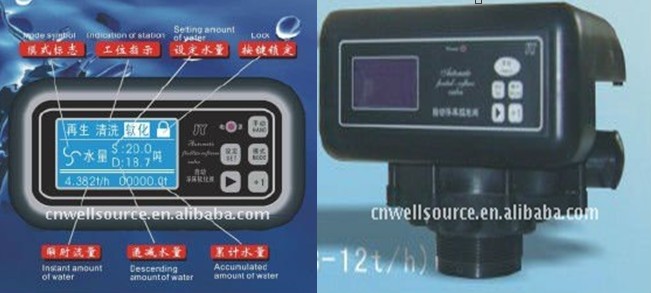

 4.The Chinese(or English)operating interface shows the instant and accumulated amount of water.
 5.There are two modes to choose from:full-flow pattern and time mode.It has the memory function of cutting off the electicity and water.
 6.It is easy to be installed and adjusted and needs no operation from the user.
 7.It can be forced to be set regeneration time of day in flow pattern.

1.Single Tank Filter Valve


No.	Model	Video Model	Function	Inlet    /Outlet	Distributor pilot	Control Mode		Flow rate (m3/h)	Package
						Flow	Time		Carton
1	GL2A	LED	Filtration	3/4 inch	3/4 inch	Dual Control Model		1-3	12EA/CTN
2	GL2B	LCD	Filtration	3/4 inch	3/4 inch	Dual Control Model		1-3	12EA/CTN
3	GL4	LED	Filtration	1 inch	1 inch	Dual Control Model		3-6	9EA/CTN
4	GL10	LCD	Filtration	1.5 inch	1.5 inch	Dual Control Model		8-12	1EA/CTN


2.Single Tank Counter-current Softener Valve


NO.	Model	Video Model	Function	Inlet    /Outlet	Distributor pilot	Control Mode		Flow rate (m3/h)	Package	Remark
						Flow	Time
1	DR2A	LED	Soften	3/4 inch	3/4 inch	Dual Control Model		1-3	9EA/CTN	434Brine Valve
2	DR2B	LCD	Soften	3/4 inch	3/4 inch	Dual Control Model		1-3	9EA/CTN	434Brine Valve
3	DR4A	LED	Soften	1 inch	1 inch	Dual Control Model		3-6	9EA/CTN	434Brine Valve
4	DR4B	LCD	Soften	1 inch	1 inch	Dual Control Model		3-6	9EA/CTN	434Brine Valve
5	DR10	LCD	Soften	1.5 inch	1.5 inch	Dual Control Model		8-12	1EA/CTN	454Brine Valve


3.Dual Tank Counter-current Softener Valve


Model	Model	Video Model	Inlet /Outlet	Control Mode		Flow(m3/h)	Package
				Flow	Time
1	ZR4	Digital	1 inch	Dual Control Model		1-6	1EA/CTN
2	RF20	Digital	1.5 inch	Dual Control Model		10-15	1EA/CTN
				Dual Control Model		20-25	1EA/CTN
3	RF50	Digital	2.5 inch	Dual Control Model		30	1EA/CTN
				Dual Control Model		40-50	1EA/CTN


4.Dual Tank Counter-current Control Valve with Timer & Totalizer


NO.	Model	Video Model	Inlet /Outlet	Control Mode		Package
				Flow	Time
1	10-15T/H control	Digital	1 inch	Dual Control Model		1EA/CTN
2	20-25T/H control	Digital	1.5 inch	Dual Control Model		1EA/CTN
3	30T/H control	Digital	2 inch	Dual Control Model		1EA/CTN
4	40-50T/H control	Digital	2.5 inch	Dual Control Model		1EA/CTN
